Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HeJin |
| Certification: | calibration certificate (cost additional) |
| Model Number: | HH0805A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Packaging Details: | Plywood |
| Delivery Time: | 60 days |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Standard: | IEC60529, IEC60598, IEC60335 | Usage: | Water Ingress Protection Test |
|---|---|---|---|
| Application: | Water Spray Testing For IPX1 IPX2 IPX3 IPX4 IPX5 IPX6 IPX7 IPX8 | Warranty: | 1 Year |
| Distance Between Holes: | 20mm | Testing Time: | 0-999.9min, Can Be Preset |
| High Light: | IEC60598 Waterproof Testing System,IEC60598 Waterproof Testing,Waterproof Testing System IEC60598 |
||
Product Description
IP Test Equipment Water Proof Testing System For IPX1 To IPX7 Open Type
Standard:
IEC 60529 Degrees of protection provided by enclosures (IP Code) IPX1, IPX2, IPX3, IPX4, IPX5 IPX6, IPX7;
IEC 60598-1 Luminaires – Part 1: General requirements and tests clause 9.2 Tests for ingress of dust, solid objects and moisture;
IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 15 Moisture resistance;
Test sample:
Mainly used in lighting, household appliances, industrial electrical, communication cabinets, auto parts, mobile intelligence and other fields.
System structure:

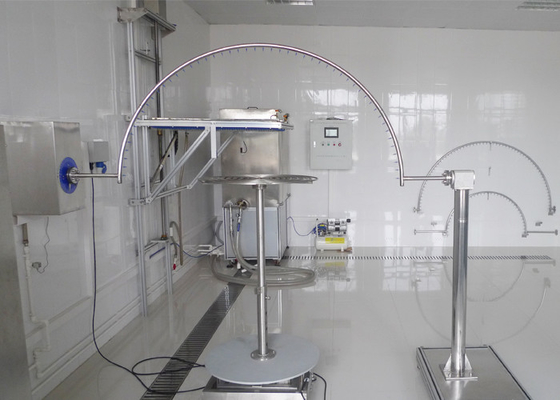

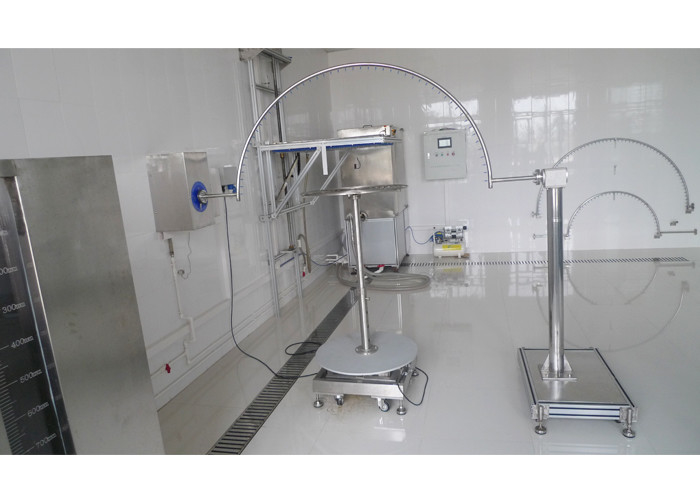

IPX1to X7 water proof testing system including drip box for IPX1 and IPX2 test, oscillating tubes and a spray nozzle for IPX3 and IPX4 test , a nozzle jet for IPX5 and IPX6 test, aΦ600mm turntable, a water supply (also for IPX7 immersion) and electrical control cabinet.

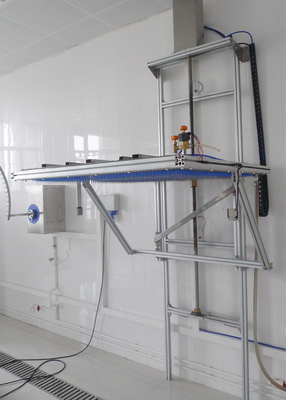

The vertical drip test frame is installed and fixed on the wall. The drip box is driven up and down by a chain drive screw to meet the 200mm drip height requirement; the oscillating tube is also installed on the wall and is rotated by the motor.
Parameter:
| 1. Drip box for IPX1 and IPX2 test | |
| Drip test area |
1000×600mm, customizable
|
| Drip height | 200mm, adjustable. Automatically sensed by infrared sensor, when the needle is located at the highest point of the sample 200mm, the drip box will automatically stop. |
| Dripping rate (Water flow) | 1+0.05 0mm/min or 3+0.05 0mm/min switchable, adopt digital controlled rainfall technology |
| Needle hole | Φ0.4mm |
| Distance between holes | 20mm |
| Testing time | 0-999.9min, can be preset |
| Installation method | Wall mounted or floor type |
|

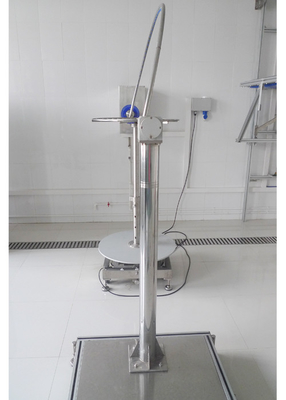

2. Oscillating tubes for IPX3 and IPX4 test |
|
| Oscillating tubes radius |
The standard configuration are R600, R800 and R1000, other radius R200, R400, R1200, R1400, R1600mm are available, made of stainless steel
|
| Needle hole | Φ0.4mm |
| Included angle of two holes | IPX3: 120°; IPX4: 180° |
| Pendulum angle | IPX3: 120°(±60°); IPX4: 350°(±175°) |
| Raining speed |
IPX3: 4 s/time(2×120°); IPX4: 12 s/time(2×350°); |
| Water flow | 1-10L/min adjustable |
| Testing time | 0.01S-99hours 59min, can be preset |
|
3. Spray nozzle for IPX3 and IPX4 test
|
|
| Spray nozzle parameters |
External diameter: Ф102mm spherical diameter: SФ75.5mm 121 holes of Ф0.5mm; 1 hole at the centre 1 inner circles of 12 holes at 30°pitch 4 outer circles of 24 holes at 15°pitch Moving shield-Aluminum Spray nozzle-Brass |
| Water flow | 10L/min±5%, Flow meter is adjustable |
| Pressure gauge | 50-150Kpa, Range of pressure gauge 0-0.25Mpa |
| 4. Nozzle jet for IPX5 and IPX6 test | |
| Nozzle diameter | IPX5: Φ6.3mm; IPX6:Φ12.5mm |
| Water flow | IPX5: 12.5±0.625L/min; IPX6: 100±5L/min |
| The distance from jet nozzle to enclosure | 2.5-3m |
| 5. Turntable | |
| Diameter | Φ600mm, Φ800mm and Φ1000mm are available, |
| Rotation Speed | 1r/min |
| Tiltable angle | 15° |
| Test angle of rotation | 90° , continuous rotation |
| Bearing Capacity | ≤150kg |
|
6. Water supply (also for IPX7 immersion) and electrical control cabinet
|
|
| Applicable |
(a) Water supply for IPX1~IPX6 waterproof test (b) IPX7 water immersion test (c) Water storage for IPX8 water tightness test (d) Automatic control for the whole waterproof equipment |
| Water storage tank |
It is applicable to water storage of IPX5~IPX6 strong water spray test, water injection of IPX8, IPX7 immersion Volume:1000L Dimension: L1000mmXW1000mmXH1000mm Observation window: toughened glass window Observation window dimension: W200mmXH1250mm Depth gauge: stainless steel Depth gauge height: 1300mm, accuracy 1mm Liquid level control: float switch + overflow pipe |
| Control Cabinet: |
Flow detection: flow signal feedback through electronic flowmeter Flow setting: set on touch screen Temperature detection: PID Controller: PLC Control Function: constant temperature water supply, constant flow water supply, constant pressure water supply, and test time control. Protection function: leakage protection, overload protection, short circuit protection |
| IPX7 immersion automatic lift bracket |
Lifting distance: 0~1250mm Bracket dimension: L1000mmXW1000mm Bracket load weight: 50Kg |
