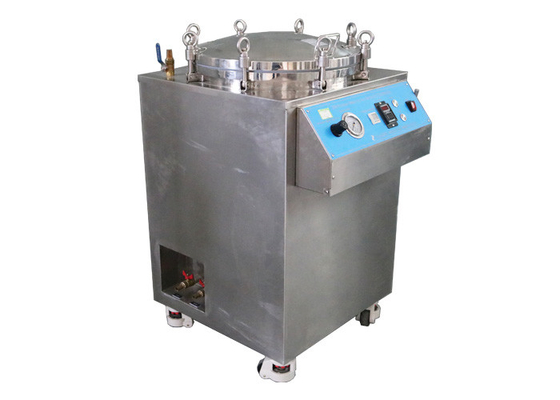

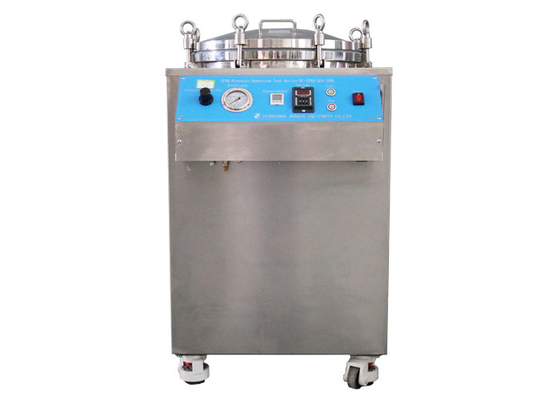

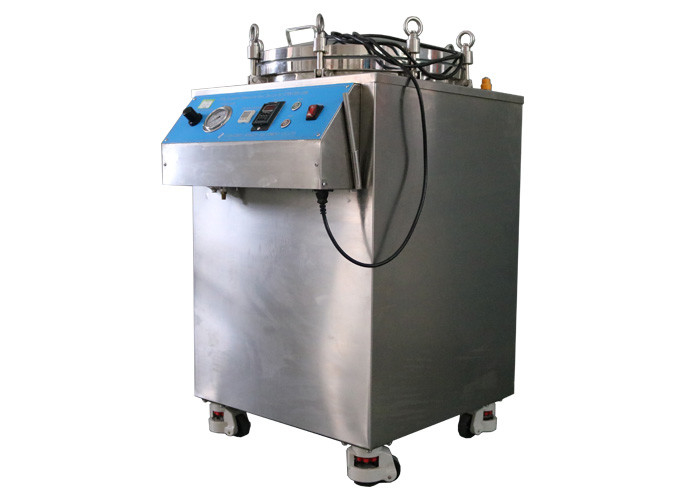

IEC 60529 Pressure Immersion Test Device

Product Details:
Place of Origin: China
Brand Name: HeJin
Certification: calibration certificate (cost additional)
Model Number: HC-IPX8-50A-100L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Supply Ability: 10 set per month

Detail Information

Product Name: Pressure Immersion Test Device Standard: IEC60529
Tank Material: Stainless Steel Usage: Water Ingress Protection Test
Function: IP Water Testing Equipment Internal Dimension: φ500*500mm
Range Of Test Depth: 0-50m Range Of Test Pressure: 0-0.5Mpa
High Light:

IEC 60529 Pressure Immersion Test Device

,

IEC 60529 Pressure Immersion Test

,

Pressure Immersion Test Device IEC 60529

Product Description

IP Test Equipment IEC 60529 IPX8 Pressure Immersion Test Device



Standard:

IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8, IEC60884-1, IEC60335-1, IEC60598-1.



Application:

It is used for the testing of IPX8. Under the device with shell protection grade (IP code) based mainly for electronic and electrical products, outdoor lighting, electric cabinet, communication equipment, diving equipment and other products to simulate the water environment to test the protective performance of IP products. The test result are used to determine whether the requirements are met, so as to provide the design, development, optimization and ex factory inspection of the product. IP Test Equipment



Testing principle:

The air pressure is applied to make the compressed air generate pressure on the water body, so as to simulate the corresponding water depth environment.



Features:

1. Applicable to the IPX8 waterproof rating test of the product.

2. The tank body is made of 304 stainless steel material, high-precision overall sub-arc welding, good pressure bearing.

3. The outside is a square structure, welded by stainless steel plate, user-friendly design: 45 ° bevel method, button operation; the lid height is moderate, easy to operate.

4. Full transparent flange cover, convenient to test the water in the sample, 20mm thick tempered glass is durable.

5. The top cover of the equipment is fixed with 8 sets of ring screws (distribution auxiliary steel bars).

6. The equipment is equipped with a safety valve. After the rated pressure is exceeded, the pressure is automatically released to prevent the operator from operating improperly and the set pressure is too high.

7. The electronic control components using imported brands (such as: LG, Panasonic, Omron, etc.); pneumatic components using Taiwan's original AirTac, to ensure the stability of the use of equipment and service life.

8. The test time can be set to: 0-999 minutes. When the test time is reached, the pressure can be automatically stopped, and the air inside the tank can be automatically drained. The tester can open the can lid and take out the test sample.

9. Pressure display: The digital pressure gauge is used to automatically control the test pressure inside the tank.

10. The base of the equipment is equipped with 4 movable brake casters for easy movement and fixing.



Parameters:

Model HC-IPX8-50A-100L. IP Test Equipment
Inner size φ500 x H500mm (customizable)
Outer size 600x780x1300mm
Wall thickness 4mm
Flange thickness 25mm
Range of test depth 0-50m
Range of test pressure 0-0.5Mpa
Vent pressure of safety valve 0.55Mpa
Maximum ultimate pressure 0.6Mpa
Pressure control mode Automatic control by pressure sensor
Display accuracy for pressure sensor 0.001Mpa
Error range for pressure sensor ± 0.002Mpa
Test time 0-999mim
Power

AC220V, 50Hz, 100w (customizable)

Protector Leakage protection, short circuit protection, water shortage protection
