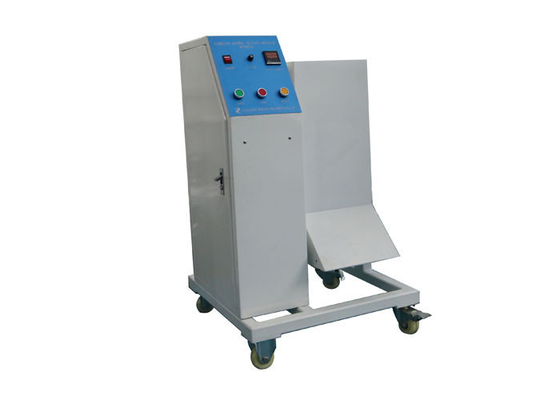

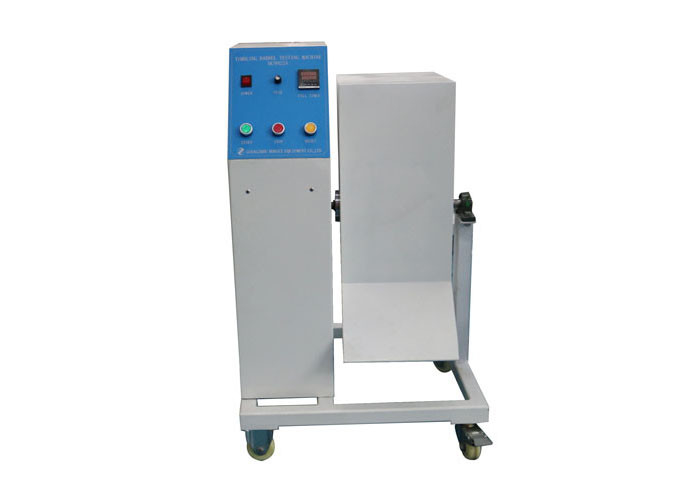

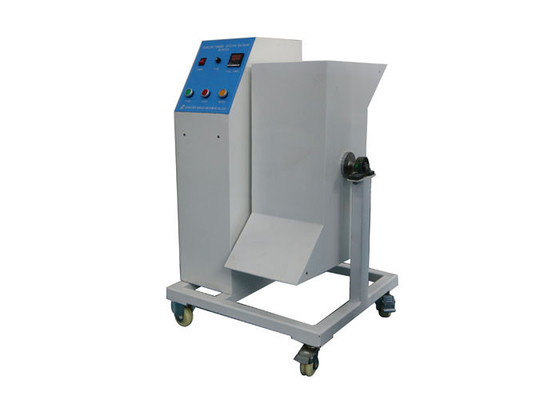

5rpm Tumbling Barrel Tester

Product Details:
Place of Origin: China
Brand Name: HeJin
Certification: calibration certificate (cost additional)
Model Number: HC9922A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 20 set /month

Detail Information

Product Name: Tumbling For Barrel Testing Machine HC9922A Rotate Speed: 5rpm
Drop Rate: 10time Per Min Standard: IEC 60598-1
Material: 3mm Steel Drop Height: 600mm
High Light:

5rpm Tumbling Barrel Tester

,

Tumbling Barrel Tester

,

5rpm Tumbling Tester

Product Description

IEC Test Equipment Tumbling For Barrel Testing Machine With Rotate Speed Of 5rpm





Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 24.2.

IEC 60598-1‘Luminaires - Part 1: General requirements and tests’  clause 4.13.6

IEC 60998-1‘Connecting devices for low-voltage circuits for household and similar purposes - Part 1: General requirements’ .

IEC 60068-2-31‘Environmental testing - Part 2-31: Tests - Test Ec: Rough handling shocks, primarily for equipment-type specimens’.

IEC 60312-1 ‘Vacuum cleaners for household use - Part 1: Dry vacuum cleaners - Methods for measuring the performance’.



Standard description of IEC60598-1:

Plug-ballast/transformers and mains socket-outlet-mounted luminaires shall have adequate mechanical strength.

Compliance is checked by the following test, which is made in a tumbling barrel as shown in Figure 25.

The barrel is turned at a rate of five revolutions per minute, ten falls per minute thus taking place.

The sample falls from a height of 50 cm onto a steel plate 3 mm thick, the number of falls being:

– 50 if the mass of the sample does not exceed 250 g;

– 25 if the mass of the sample exceeds 250 g.

After the test, the sample shall show no damage within the sense of this standard, but it need not be operative and any damage to the glass bulb shall be ignored. Provided that the protection against electric shock is not affected, small pieces which may have broken off the sample are ignored.



Application:

This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.IEC Test Equipment



Test sample:

plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.



Feature:

This tester can preset test times, automatic stop when set test times completed. IEC Test Equipment



Parameters:

Model HC9922 HC9922A HC9922B HC9922C
Rotate speed 5rpm 5rpm 5rpm 5rpm
Drop rate 10time per min 10time per min 10time per min 10time per min
Material Sideways 1.5mm high-quality steel plate, upper and lower for 3mm steel pad in the 10-19mm wood and oblique part slide surface is plastic laminate, with triangle rubber pad 3mm steel Front and rear are the transparent plastic sheet, the up, down, left and right are with thickness of 10~19mm plywood 5 mm steel and 20mm hard wooden plate
Test times 0~9999 0~9999 0~9999 0~9999
Drop height 500mm (1000mm for option) 500mm 500mm 800mm
Barrel number Single or double Single barrel Single barrel Single or double
Application Plug and socket and similar electrical accessories Plug type lamp ballast / transformer and power socket install luminaries, plug device BS plug and socket-outs Household vacuum cleaners and similar electrical appliances
Standards IEC60884.1, IEC60068-2-31, EN50075 IEC60598-1 figure25, VDE0620-1 figure27

BS1363.1 Figure20,

UL60730

IEC60312-1
Power supply 220V 50Hz 220V 50Hz 220V 50Hz 220V 50Hz
