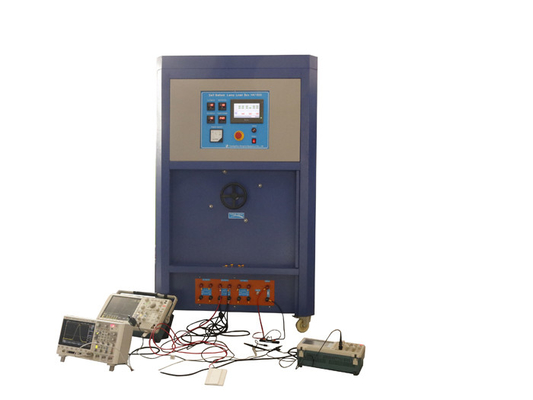

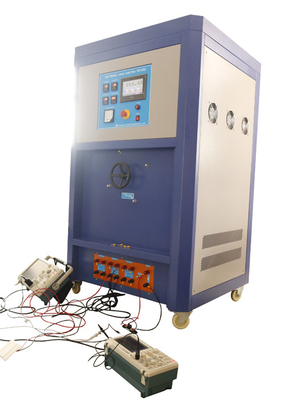

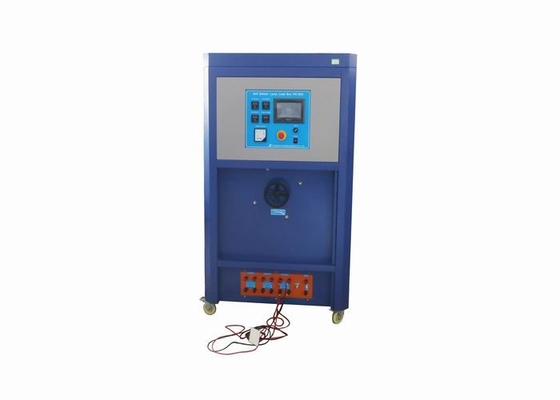

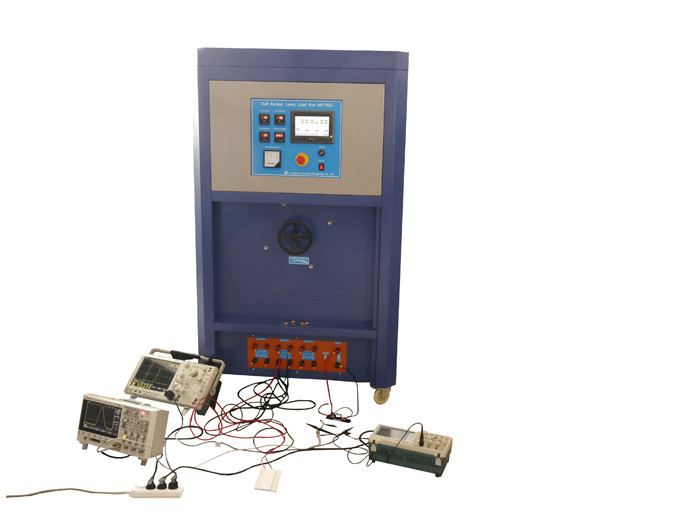

AS200V Self Ballasted Lamp Load Box

Product Description

IEC Test Equipment Self Ballast Lamp Load Box With 3 Outpur Channel

Standard:

IEC 60669-1 2004 ‘Switches for household and similar fixed electrical installations - Part 2-1: Particular requirements - Electronic switches’ clause 19.3b

Application:

This device is suitable for breaking capacity and normal operation life test to fixed switches for house held and similar purpose, especially suitable for self ballast lamp switch electric stress and thermal stress test when control the LED circuit. To verify whether the switch can withstand normal use, any mechanical damage or electrical fatigue failure under normal operation, any contact adhesion phenomenon or long term closure or disconnection phenomenon, to test whether excessive wear or other harmful consequences.

Test sample:

Household Appliance Test Equipment Self Ballast Lamp(SBL) Switches IEC Test Equipment

Feature:

Dimension about: wide (710mm) * Deep (620mm) * high (1710mm). The front side of the operation control panel, the panel is made of high quality aluminum through etching, sand blasting, coloring process, beautiful and durable. With power control switch, current, voltage, power, power factor meters, load power output switch, indicator lamp, current output and stop button, alarm, capacitance gear selection switch, current gear selection switch on the panel. With resistor and capacitor load combination, AC contactor, relay, heat using strong wind flow cooling built inside. With connecting post on the bottom, which is connected with the products and the testing machine through a conducting wire, output current and load to the product during test.

Parameters:
