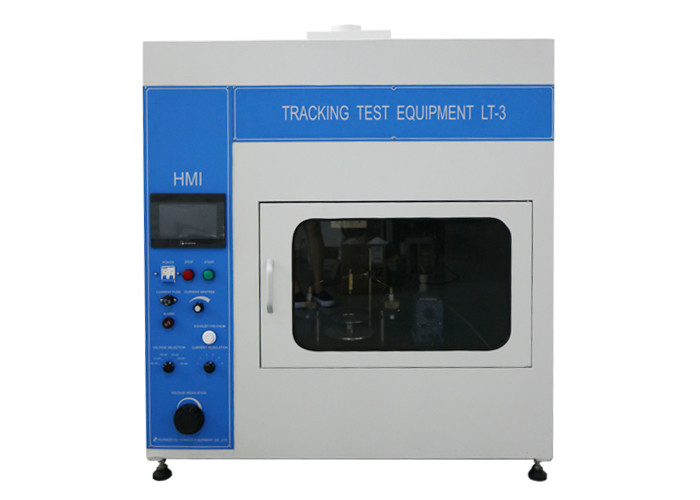

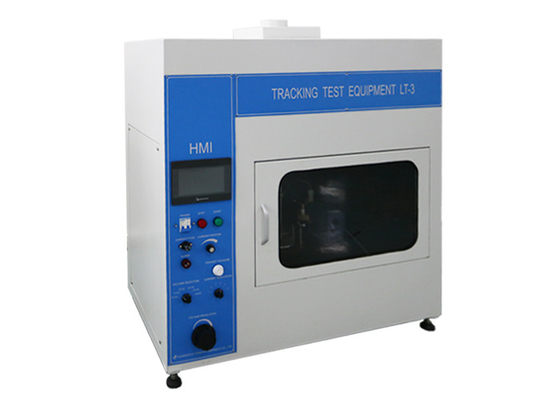

IEC 60112 Flammability Testing Equipment Tracking Index Touch Screen Operation

Name: IEC 60112 Flammability Testing Equipment Tracking Index Touch Screen Operation
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: LT-3
Availability: InStock

Brand Name:	HeJin
Model Number:	LT-3
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Standard:

IEC 60112

Usage:

Flame Testing Equipment

Electrode Pressure:

1.00N±0.05N

Electrodes Size:

Rectangular Cross-section Of (5 ± 0,1 ) Mm × (2 ± 0,1 ) Mm

Electrode Material:

Platinum

Electrode Angle:

60°

Drops Intervals:

30 S ± 5 S

Drops Height:

35 Mm ± 5 Mm

Test Voltage:

0-600V Adjustable

Working Volume:

> 0.5 M³

Packaging Details:

Plywood

Highlight:

IEC 60112 Flammability Testing Equipment

600V Adjustable Flammability Testing Equipment

Product Description

Flammability Testing Equipment IEC 60112 Tracking Index Touch-Screen Operation

Standard:

IEC60112-2009 Method for the determination of the proof and the comparative tracking indices of solid insulating materials.

Application:

It is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities. Flammability Testing Equipment

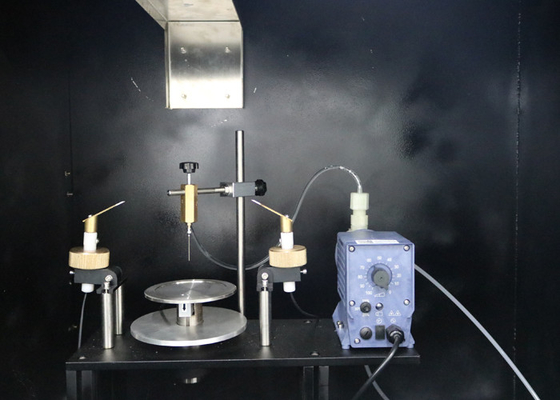

The test apparatus and test procedure consist of:

1. Two electrodes of platinum with a minimum purity of 99 %.

2. Test circuit with a substantially sinusoidal voltage, variable between 100 V and 600 V at a frequency of 48 Hz to 62 Hz.

3. Test solution A and solution B.

4. Dropping device. Drops of the test solution shall fall on to the specimen surface at intervals of 30 s ± 5 s. The drops shall fall more or less centrally between the electrodes from a height of 35 mm ± 5 mm. Flammability Testing Equipment

Parameter:

Timing device	9999X0.1S Resolution	Drip interval	Adjustable
Electrode material	Platinum	The height of the drip	30-40mm
Electrode specifications	5mm*2mm	Drip delay	0.2S (solenoid valve open time)
Electrode spacing	4±0.1mm	Drip size	45 - 50 drops / cm3
Electrode pressure	1±0.05 N	Delay electric circuit	2 ± 0.1S (at 0.5A)
Electrode angle	60°	Test voltage range	0-600V Accuracy:1.5%
Short circuit voltage drop	8% MAX	Electrical parameters	1.5KW/220VAC/50Hz
Short-circuit current	1±0.1A Accuracy: 1%	Working volume	> 0.5 M³

IEC 60112 Flammability Testing Equipment Tracking Index Touch Screen Operation 0
